[umit]

i probably don't recognize the tl431 and uc 3879 products because I'm using the current version of my system. will you use equivalent products and share the working circuit with me _?the current version I am using right now.version (x64): 24.1.9



[Udo]

Hi umit,
the UC3879-file was uploaded by several other users in our group, and no problems occured.

I am attaching the files again. Make sure that all files are in the same directory !!
Where have or did you place(d) your other working files, in which directories? How did you organize your personal working folders. ?
------
Udo



[umit]

Hi umit,
the UC3879-file was uploaded by several other users in our group, and no problems occured.

I am attaching the files again. Make sure that all files are in the same directory !!
Where have or did you place(d) your other working files, in which directories? How did you organize your personal working folders. ?
------
Udo

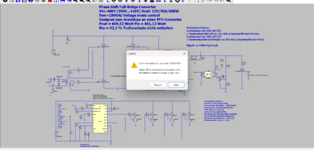

First of all, thank you very much for your return. . I downloaded the files you sent again and saved them all in the same directory. I will try it again from the beginning. It gave me a warning like this, but I said OK and continued, just so you know. and finally he gave a warning.

Hi umit,
the UC3879-file was uploaded by several other users in our group, and no problems occured.

I am attaching the files again. Make sure that all files are in the same directory !!
Where have or did you place(d) your other working files, in which directories? How did you organize your personal working folders. ?
------
Udo

• First of all, thank you very much for your return. . I downloaded the files you sent again and saved them all in the same directory. I will try it again from the beginning. It gave me a warning like this, but I said OK and continued, just so you know. and finally he gave a warning. But it worked, is there anything you need to update about it?i think there is a problem with the mmbz18val and 2scr293p equipment.Besides, I have a favor to ask of you .

  --I need to add a novelty to my circuit and I have 2 options, can you help me with this?

  1- Bidirectional PSFB (Bidirectional) + Battery Charger/DischargeUsing
  the PSFB in both charger and discharge modeBidirectional PSFB (Bidirectional) + Battery Charger/Discharge


  2- Multi-Mode PSFB (with ZVS ↔ ZCS pass-through)
  Can we make the circuit able to select the most appropriate resonance mode according to the load condition?
  If the load current is low: Switch to ZCS mode.If the load current is high: Stay in ZVS mode.
  Innovation: Dual-mode resonant switching control algorithm → high efficiency over a wide load range.




[spicer]

First of all, thank you very much for your return. . I downloaded the files you sent again and saved them all in the same directory. I will try it again from the beginning. It gave me a warning like this, but I said OK and continued, just so you know. and finally he gave a warning.

• First of all, thank you very much for your return. . I downloaded the files you sent again and saved them all in the same directory. I will try it again from the beginning. It gave me a warning like this, but I said OK and continued, just so you know. and finally he gave a warning. But it worked, is there anything you need to update about it?i think there is a problem with the mmbz18val and 2scr293p equipment.Besides, I have a favor to ask of you .

  --I need to add a novelty to my circuit and I have 2 options, can you help me with this?

  1- Bidirectional PSFB (Bidirectional) + Battery Charger/DischargeUsing
  the PSFB in both charger and discharge modeBidirectional PSFB (Bidirectional) + Battery Charger/Discharge


  2- Multi-Mode PSFB (with ZVS ↔ ZCS pass-through)
  Can we make the circuit able to select the most appropriate resonance mode according to the load condition?
  If the load current is low: Switch to ZCS mode.If the load current is high: Stay in ZVS mode.
  Innovation: Dual-mode resonant switching control algorithm → high efficiency over a wide load range.

See Howto - Phase-shifted Full-Bridge Converter PSFB

(Post #17 & #19)



[Udo]

Umit, your error message means, you do not have those elements in your library ! If I am right, the missing transistors are in the standard lib of LTspiceXVII.
The best is, you check for LTspice updates. Then you will get more components, filling up your standard library. The standard lib components are in a directory named "cmp".
Another possibility is you search for other transistors which are listed in your library and offer voltage and current requirements for the driver circuit.



[umit]

Umit, your error message means, you do not have those elements in your library ! If I am right, the missing transistors are in the standard lib of LTspiceXVII.
The best is, you check for LTspice updates. Then you will get more components, filling up your standard library. The standard lib components are in a directory named "cmp".
Another possibility is you search for other transistors which are listed in your library and offer voltage and current requirements for the driver circuit.

--I need to add a novelty to my circuit and I have 2 options, can you help me with this?

1- Bidirectional PSFB (Bidirectional) + Battery Charger/DischargeUsing
the PSFB in both charger and discharge modeBidirectional PSFB (Bidirectional) + Battery Charger/Discharge


2- Multi-Mode PSFB (with ZVS ↔ ZCS pass-through)
Can we make the circuit able to select the most appropriate resonance mode according to the load condition?
If the load current is low: Switch to ZCS mode.If the load current is high: Stay in ZVS mode.
Innovation: Dual-mode resonant switching control algorithm → high efficiency over a wide load range.



[spicer]

Es wäre cool, wenn ihr die englischen Fragen auch in "Translater-deutsch" posten könntet, da wir ein deutschsprachiges Forum sind



[umit]

Es wäre cool, wenn ihr die englischen Fragen auch in "Translater-deutsch" posten könntet, da wir ein deutschsprachiges Forum sind

YOU ARE RIGHT, I APOLOGIZE. I WAS A LITTLE DISTRACTED. WRITING AND SENDING IN TURKISH WAS A MISTAKE.

--I need to add a new feature to my circuit and I have two options, can you help me with this?

1- Bidirectional PSFB (Bidirectional) + Battery Charge/DischargeUsing the PSFB in both charge and discharge mode Bidirectional PSFB (Bidirectional) + Battery Charge/Discharge

2- Multi-Mode PSFB (with ZVS ↔ ZCS transition)Can we make the circuit able to select the most suitable resonance mode according to the load condition?

If the load current is low: switch to ZCS mode. If the load current is high: Stay in ZVS mode.Innovation: Dual-mode resonant switching control algorithm → high efficiency over wide load range.


deutschsprachiges

DU HAST RECHT.ES TUT MIR LEID.ICH WAR ETWAS ABWESEND. ES WAR EIN FEHLER, TÜRKISCH ZU SCHREIBEN UND ZU SCHREIBEN.

•
  -- Ich muss eine Neuheit zu meiner Schaltung hinzufügen, und ich habe zwei Möglichkeiten, kannst du mir dabei helfen?

  1-Duplex PSFB (Duplex) + Batterieladung / EntladungVerwendung von Psfb im Lade-und entladungsmodus Duplex PSFB (Duplex) + Batterieladung / Entladung

  2-Multi-Modus PSFB (ZVS mit dem ZCS-Übergang von lloc)Können wir die Schaltung in der Lage machen, den am besten geeigneten resonanzmodus basierend auf dem Lastzustand zu wählen?Wenn der Laststrom niedrig ist: wechseln Sie in den ZCS-Modus. Wenn der Laststrom hoch ist: bleiben sie im ZVS-Modus.Neuheit: Dual-Mode-resonanzschaltungssteueralgorithmus ① hohe effizienz über einen breiten Lastbereich.




[umit]

Umit, your error message means, you do not have those elements in your library ! If I am right, the missing transistors are in the standard lib of LTspiceXVII.
The best is, you check for LTspice updates. Then you will get more components, filling up your standard library. The standard lib components are in a directory named "cmp".
Another possibility is you search for other transistors which are listed in your library and offer voltage and current requirements for the driver circuit.

--I need to add a new feature to my circuit and I have two options, can you help me with this?

1- Bidirectional PSFB (Bidirectional) + Battery Charge/DischargeUsing the PSFB in both charge and discharge mode Bidirectional PSFB (Bidirectional) + Battery Charge/Discharge

2- Multi-Mode PSFB (with ZVS ↔ ZCS transition)Can we make the circuit able to select the most suitable resonance mode according to the load condition?

If the load current is low: switch to ZCS mode. If the load current is high: Stay in ZVS mode.Innovation: Dual-mode resonant switching control algorithm → high efficiency over wide load range.
